Waste Heat Boiler utilizes the hot flue gas from an upstream process to generate steam. It recovers various types of waste heat generated from the production process of steel, chemical, cement etc. and converts such recovered heat into useful thermal energy. Waste Heat Boiler contributes to the society in improvement of thermal efficiency, energy saving and environmental protection. Flue gas temperature, flow, pressure, corrosiveness and dust content vary greatly depending on actual facility discharging waste heat. Hence the design and fabrication of waste heat boiler require rich experience and technical capability.

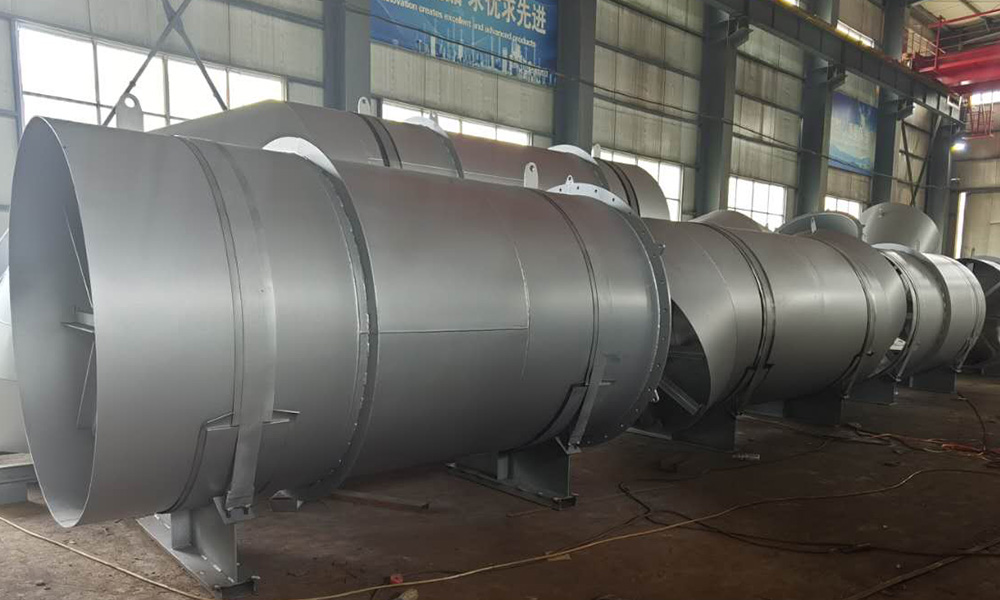

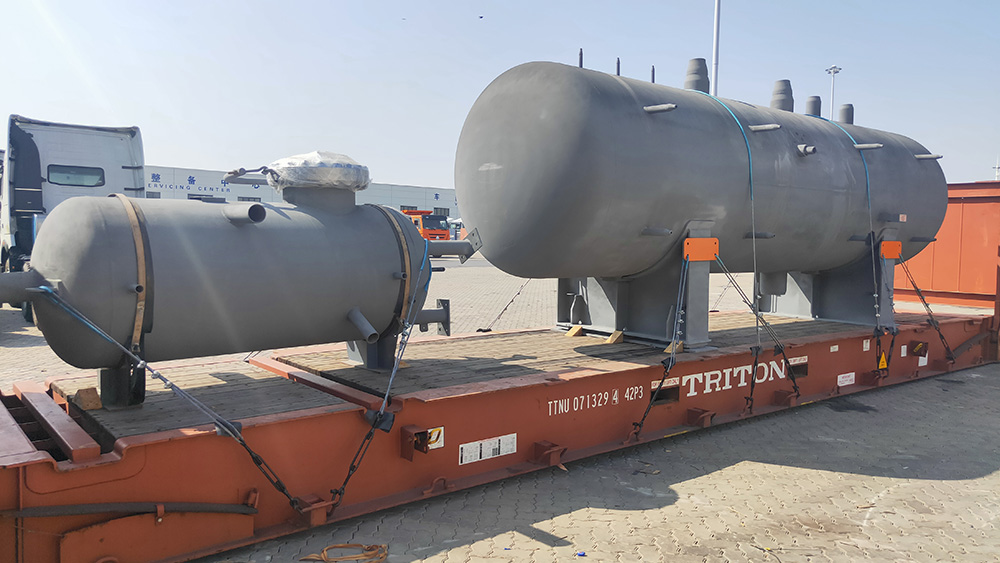

In April 2020, industrial boiler manufacturer Taishan Group won a HRSG related order from South Korea. The scope of supply includes four sets of steam drums, one set of deaerator, two sets of blowdown tanks, and one set of flue duct. The final user is respectively POSCO and Hyundai Steel, both of them are famous steel mills in the world.

Parameter for POSCO Waste Heat Boiler

Design and manufacture as per: ASME Section I Edition 2017

Steam flow: 18t/h

Design pressure: 19barg

Maximum allowable working pressure (MAWP): 19barg

Test pressure in workshop: 28.5barg

Design temperature: 212℃

Operating temperature: 212℃

Contents: 11500L

Medium: water / steam

Corrosion allowance: 1mm

Parameter for Hyundai Waste Heat Boiler

Design and manufacture as per: ASME Section VIII DIV. 1 Edition 2017

Steam flow: 26.3t/h

Design pressure: 30barg

Maximum allowable working pressure (MAWP): 30barg

Test pressure in workshop: 40barg

Design temperature: 236℃

Operating temperature: 236℃

Minimum design metal temperature (MDMT): +4℃

Contents: 16900L

Medium: water / steam

Corrosion allowance: 1mm

After five month’s detailed design and careful fabrication, now all have arrived at the project site and are ready for erection. This is our first export of steam boiler to South Korea, and will establish a stable foundation for future cooperation. Warmly welcome other customers from South Korea to place order to us.
